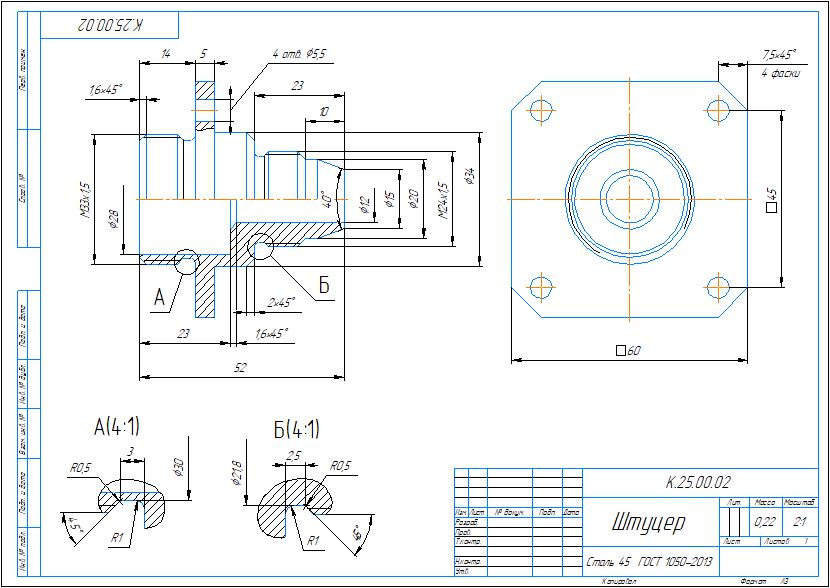

K.25.00.02 Fitting – detailed working drawing in KOMPAS-3D
Detailed working drawing of the K.25.00.02 fitting (Item 2) from the K.25.00.00 valve assembly. The drawing was created using Kompas-3D software.
