DESCRIPTION

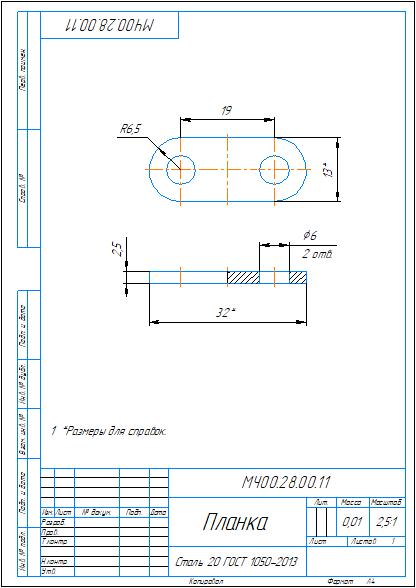

MCh00.28.00.11 plate – part drawing in Kompas-3D software
Detailed working drawing of the MCh00.28.00.11 screw (Item 11) from the MCh00.28.00.00 manual pump assembly. The drawing was created using Kompas-3D software.
