04.009 Seal – part drawing in Kompas-3D software
- Price in currencies:
- 1.45 $ · 102 RUB · 1.29 €
- Category:
- Drawings
- Item:
- Манжета.zip (44.29 KB)
- Uploaded:
- 31.08.2026 15:12:36
- Sales:
- 0
- Refunds:
- 0
- Seller:
- alexey_ktop · about the seller and their products
DESCRIPTION

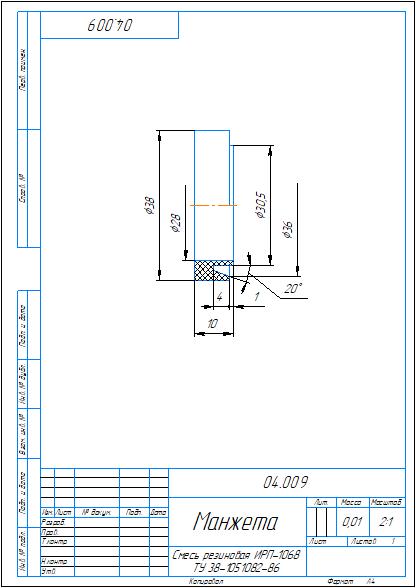

04.009 Seal – part drawing in Kompas-3D software
Working drawing of part 04.009 (Item 9)—a seal—from the 04.000 brake cylinder assembly, taken from Aksarin’s detailing album. The drawing was created using KOMPAS-3D software.
REVIEWS
Reviews: (0)
No customer reviews yet.
