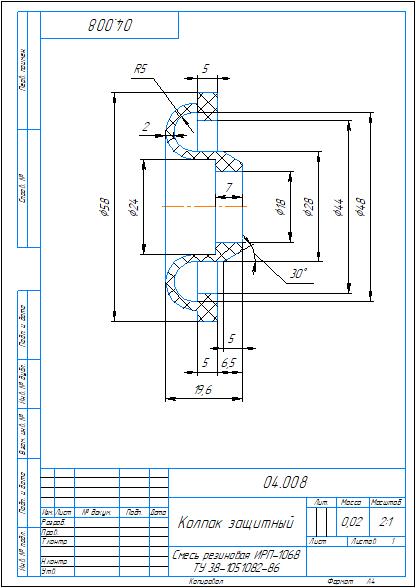

04.008 protective cap – part drawing in Kompas-3D software
Working drawing of the protective cap (Item 8, part no. 04.008) from the 04.000 brake actuating cylinder assembly, taken from Aksarin’s detailing album. The drawing was created using KOMPAS-3D software
